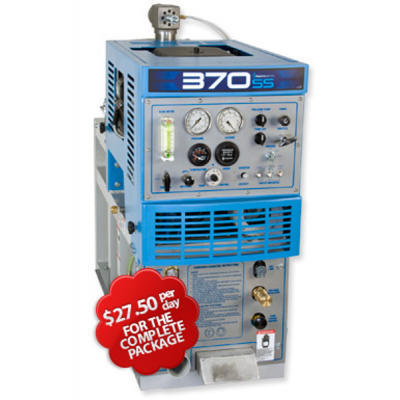

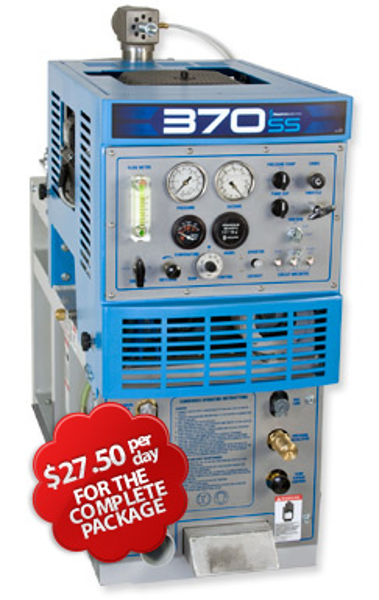

Sapphire Truckmounts – 370SS

sapphire_truckmounts__370ss_
The Power Plant The Sapphire 370 SS maintains the same compact framework as the Sapphire 270, while at the same time maximizing cleaning performance with an industrial 20 HP Kohler engine. Kohler Engines, based in Wisconsin USA, has been an industry pioneer for more than 80 years. The Kohler Comm ...Read more
  • Description
  • Technical Information

The Power Plant

The Sapphire 370 SS maintains the same compact framework as the Sapphire 270, while at the same time maximizing cleaning performance with an industrial 20 HP Kohler engine. Kohler Engines, based in Wisconsin USA, has been an industry pioneer for more than 80 years. The Kohler Command Pro engine that is utilized on the Sapphire Scientific 370 SS is the professional standard for power and performance and offers the best-in-class engineering and performance on torque, fuel and oil consumption, extended maintenance intervals and sound levels.

It has full-pressure lubrication which delivers continuous, positive lube to engine components. It also runs a full-flow filter that cleans the entire oil supply 150 times/hour, extending oil-change intervals to 100 hours and filter changes to 200 hours, under normal running conditions.

The high-efficiency design of this motor delivers greater volumetric efficiency and higher compression ratio with virtually no carbon build-up. Your truckmount engine will therefore run cooler with superior power and fuel efficiency, reduced oil consumption and less maintenance. Valve lifters are oil-pressurized, insuring that push rods stay in constant contact with rocker arms. Requiring no adjustments, the valve train is virtually maintenance-free.

A large-capacity, dual-element air filter traps contaminants to ensure proper engine protection. This results in long life, maximum engine performance and lower exhaust emissions. Also, a high-capacity, in-line fuel filter provides extra protection against dirt particles that can clog fuel lines and reduce engine performance. The result is faster starts, smoother operation and virtually no downtime due to fuel contamination.

The Vacuum Blower

The new Gardner Denver positive displacement trilobe vacuum pumps are designed especially to match the requirements of our industrial truck mounted vacuum cleaning systems. These innovative machines offer operators significant benefits and advantages such as highest quality materials and construction, heavy-duty design throughout, flexible installation capability, reduced maintenance with extended durability, greater performance and efficiency in a compact platform.

Manufacturing blowers for more than 150 years of quality manufacturing with proven results

High Pressure Water Pump

Providing the 1500 psi of heated water pressure is the legendary CAT 3CP triplex pump. It also has last-step chemical injection to which maximizes pump performance. This pump is not only high pressure, but also high flow – running 4.3 GPM, which is much higher than most truckmounts run. This pump also has Hot Dry seals installed to help prevent premature seal degradation. It has an electric clutch to turn the pump on and off therefore not running the pump and belts unnecessarily.

The heavy-duty, high-strength drive-end construction used on the 3CP pump that is on the Sapphire Scientific 370 SS assures you will receive long life from your pump. CAT pumps compact pump design, easy mounting to belt-drive, quiet, energy-efficient operation and low maintenance make these specially designed carpet and tile cleaning pumps the most economical and reliable for use in your truckmount!

Technical Information

Key Features of the Sapphire Scientific 370 SS at a glance – Smallest cubic size in the industry: Requires 50% less cubic inches than other competitive models freeing up precious van space Thermostatic control: Allows complete temperature control up to 250 degrees Longer belt life: Unique through-frame cooling system directs air over drive belts, extending belt lifespan. Intuitive control panel simplifies operation Last step chemical injection ensures peak performance from water pump system Gardner Denver 406 with tri-lobe blower design producing 16″ Hg One of the most rigid frames ever built – reduces vibration and increases reliability Proven Kohler motor and CAT pump ensures the best lifespan You’ll get all the cleaning power you’ll need and still have room on the truck for all your other supplies and equipment. With the Sapphire’s last-step chemical injection system and complete temperature control, you can ensure consistent results on every job. And the unit’s Exclusive Short Reach Service Design (no more than 20 cm to the middle of the console) makes do-it-yourself maintenance a breeze. The 370 SS is backed by Sapphire Scientifics no-hassle 2-year warranty. This is the most popular sized machine that most carpet cleaners, tile Power plant 20 HP Kohler Command gasoline engine operating at 2800 RPM Vacuum pump Gardner Denver 406 tri-lobe design producing 16″ Hg Solution pump CAT 3CP 1120 producing 1500 PSI and 4.3 GPM Waste tank 294 litre marine grade aluminum Console dimensions (W × H × D) 40.5 cm × 86.4 cm × 101.6 cm Weight 320 kg And every unit is backed by Sapphire Scientifics’ no-hassle 2-year warranty.
